China Henan Yuanda brand coal hot water greenhouse boiler

FOB Price:

US 5000-50000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

5000 Set/Sets per Year

Port:

Shanghai/Qingdao/Tianjin

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

Henan yuanda boiler

Products Model:

DZL

Products Details
Company Profile

Quick Details

Brand Name: Henan yuanda boiler

Model Number: DZL

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: Wooden box and seaworthy package for boiler body and all ancillary equipment
Delivery Detail: 30 days in general,but we can advance the delivery time

Specifications

China Henan Yuanda brand coal hot water greenhouse boiler

Product Description

China Henan Yuanda brand coal hot water greenhouse boiler--DZL coal boiler series !

High praised by the overseas customers !

High heat efficiency&Longer use life !

This boiler series with 100% stable quality!

Advantages:

1.Optimum structural design with fire & water mixing tube make smaller boiler volume and can save 1/3 building cost of the boiler house.

2.Spirally corrugated tubes achieves 1-2times higher heat transfer efficiency,and easy for maintenance.

3.New design and larger volume furnace enhance burning efficiency,also lower fuel requirements.

4.Longer use life and easy maintenance.

Technical data of this coal hot water boiler:

Coal hot water boiler model	Thermal power	Working pressure	Return water temp	Outlet water temp	Efficiency	coal Consumption	Circulating water	Delivery weight	Delivery mode
Coal hot water boiler model	MW	Mpa	°c	°c	%	Kg/h	t/h	t	Delivery mode
DZL0.7-0.7/95/70-AII	0.7	0.7	70	95	81	110	24	14.2	Packaged boiler
DZL1.4-0.7/95/70-AII	1.4	0.7	70	95	81	222	48	22.6	Packaged boiler
DZL2.8-0.7/95/70-AII	2.8	0.7	70	95	81	432	96	27	Packaged boiler
DZL4.2-0.7/95/70-AII	4.2	0.7	70	95	81	633	144	45.5	Packaged boiler
DZL5.6-1.0/95/70-AII	5.6	1.0	70	95	81	855	192	40	Assembly boiler
DZL7-1.0/115/70-AII	7	1.0	70	115	81	1068	133	45	Assembly boiler
DZL10.5-1.0/115/70-AII	10.5	1.0	70	115	81	1587	200	55.6	Assembly boiler
DZL14-1.0/115/70-AII	14	1.0	70	115	81	2116	266	19.08	Semi-assembly boiler

Accessories

To ensure the boiler's safe and high efficient running, we will provide the following complete configuration for our customers.

That is the table below:

Boiler accessories
1. FD fan	1set
2. ID fan	1set
3. Electrical control cabinet	1set
4. Valves&Instruments	1set
5. Fire grate reducer	1set
Boiler room equipment
6. Hot water circulating pump	1set
7. Chimney	1set
8. Gas duct	1set
9. Economizer	1set
10.Coal feeder	1set
11.Slag remover	1set
12.Dust catcher	1set
13.Water soften equioment	1set

Our Services

Quality Control

1.58 years corporate reputation.

2.B-grade boiler manufacturer qualification.

3.D-grade pressure vessel manufacturer qualification

4.High grade welder certificate.

Guarantee and After-sale service

1.One year warranty and full-life service for all our boilers.

2.A full range of original spare parts are available for all yuanda boilers.

3.24 hours technical support by email.

4.Engineers available to service overseas.

The factory daily manufacturer situation as follows:

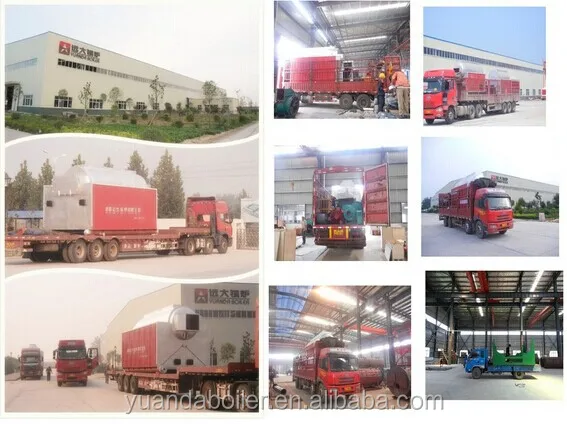

Packaging & Shipping

We will adopt many methods to protect the boiler while transportating, such as rubber pad, wooden box, strong rope and so on.

Our products

Since found in 1956, yuanda boiler have been committed to provide the best products to our customers, during these 58 years, we create and complete the following boiler and pressure vessel categories:

1.0.5-20ton steam boiler.

2.0.35-14MW hot water boiler .

3.Burning fuel:coal,biomass, wood, anthracite,natural gas,Lpg,heavy oil, diesel, and so on.

4.Boiler pressure:0.4-2.5Mpa,4-25bar.

5.Horizontal or vertical type.

Inventory status

We can supply from stock when the customers are in urgent need of the boiler , the stock range is wide ,and includes almost all kinds of our products.so Sincerely welcome to our company for a visit !

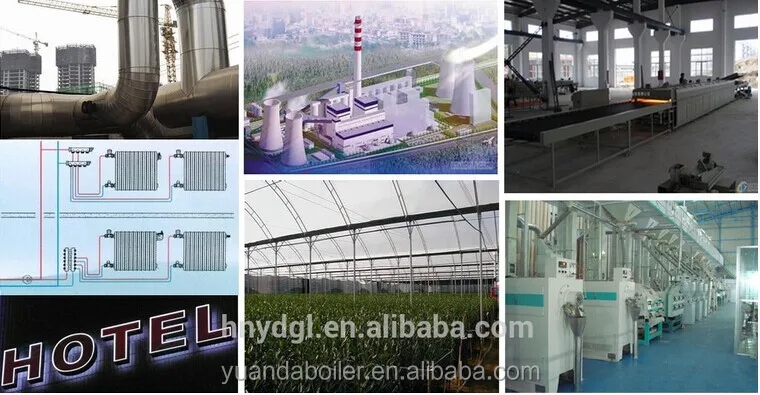

Applicable industry

Our boilers applicable industry is wide, such as greenhouse, hospital, school, government , chemical industry, wood drying industry and so on, you can see from the following pictures.
